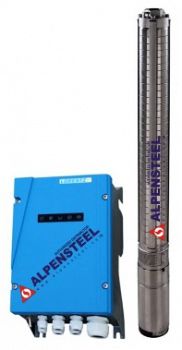

PS2 - 220m

The Complete Efficient Solar Pumping System

PS2 is the latest generation of high efficiency solar water pumping systems. It is an integrated solar water pumping system for small to medium sized applications. Whether your need is to reduce operational costs, improve water security, or be more sustainable, PS2 provides the right solution.

PS2 covers a wide power range from 150W to 4kW with a wide range of pumps for submersible, surface or swimming pool applications.

Solar Submersible Pump System for 4" wells

System Overview

Head max. 220 m
Flow rate max. 4,2 m3/h

Controller PS2-4000

• Controlling and monitoring
• Control inputs for dry running protection, remote control etc.
• Protected against reverse polarity, overload and overtemperature
• Integrated MPPT (Maximum Power Point Tracking)
• Integrated Sun Sensor

Power max. 4,0 kW
Input voltage max. 375 V
Optimum Vmp** > 238 V
Motor current max. 14 A
Efficiency max. 98 %
Ambient temp. -40...50 °C
Enclosure class IP68

• Motor ECDRIVE 4000-C
• Maintenance-free brushless DC motor
• Water filled
• Premium materials, stainless steel: AISI 304/316
• No electronics in the motor

Rated power 4,0 kW
Efficiency max. 92 %
Motor speed 900...3.300 rpm
Insulation class F
Enclosure class IP68
Submersion max. 150 m
Pump End PE C-SJ3-32

• Non-return valve
• Premium materials, stainless steel: AISI 304
• Centrifugal pump

Efficiency max. 52 %
